Melt Pressure Transducer Hole Plugs

See price below

MP-PLUG-2: 1/2-20UNF Hole Plug (1.82″L)

MP-PLUG-3: 1/2-20UNF Hole Plug (3.66″L)

MP-PLUG-6: 1/2-20UNF Hole Plug (6.7″L)

SKU: Melt Pressure Hole Plug

Melt Pressure Transducer Hole Plugs

Description

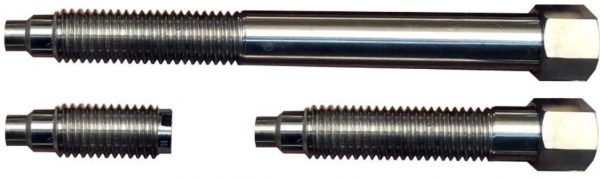

Melt Pressure Transducer Hole Plugs

Melt pressure transducer/transmitter hole plugs are used to seal old holes that are no longer needed. Our transmitter/transducer hole plugs are made to the same high quality standards as our melt pressure transducers and extruder rupture disks.



Melt Pressure Hole Plugs are available with the following thread options: ½-20UNF, 5/8-11NC, ¾-16UNF, M18x1.5, and M14x1.5. Custom threads are also available.  Call 800-852-8324 for custom threads.

Please note that the hole plugs should be installed when the polymer is molten, and with zero pressure in the system.



Melt Pressure Transducer Hole Plug Features

  • Compatible with: Dynisco, Gefran, GP50
  • Thread options: ½-20UNF, 5/8-11NC, ¾-16UNF, M18x1.5, M14x1.5, custom
  • Available in lengths from 1.82” to 10”
  • Engineering tech support available by email or phone
  • Same day shipping available on many items
  • Quick delivery on custom products



1/2-20 UNFx 1.82″L, Slotted Hole Plug: (MP-PLUG-2)

Mounting Hole Plug

Specifications:

  • Thread: 1/2-20 UNF
  • Mfg Days to Ship (max): Stock
  • Length (hex extra): 1.82″
  • Slot/Hex Head: Slot

Features:

  • Used to seal old mounting holes
  • 304 SS
  • Slotted / Hex Head

Product Files (click to view pdf):

Mounting Hole Plug (PDF)

Mounting Hole Drawing (PDF)



1/2-20 UNFx 3″L + Hex Hole Plug: (MP-PLUG-3)

Mounting Hole Plug

Specifications:

  • Thread: 1/2-20 UNF
  • Mfg Days to Ship (max): Stock
  • Length (hex extra): 3″
  • Slot/Hex Head: Hex

Features:

  • Used to seal old mounting holes
  • 304 SS
  • Slotted / Hex Head
Product Files (click to view pdf):



1/2-20 UNF x 6″L + Hex Hole Plug: (MP-PLUG-6)

Mounting Hole Plug

Specifications:

  • Thread: 1/2-20 UNF
  • Mfg Days to Ship (max): Stock
  • Length (hex extra): 6″
  • Slot/Hex Head: Hex

Features:

  • Used to seal old mounting holes
  • 304 SS
  • Slotted / Hex Head
Product Files (click to view pdf):

Additional information

Weight 1 lbs
Dimensions 5 × 5 × 5 in
