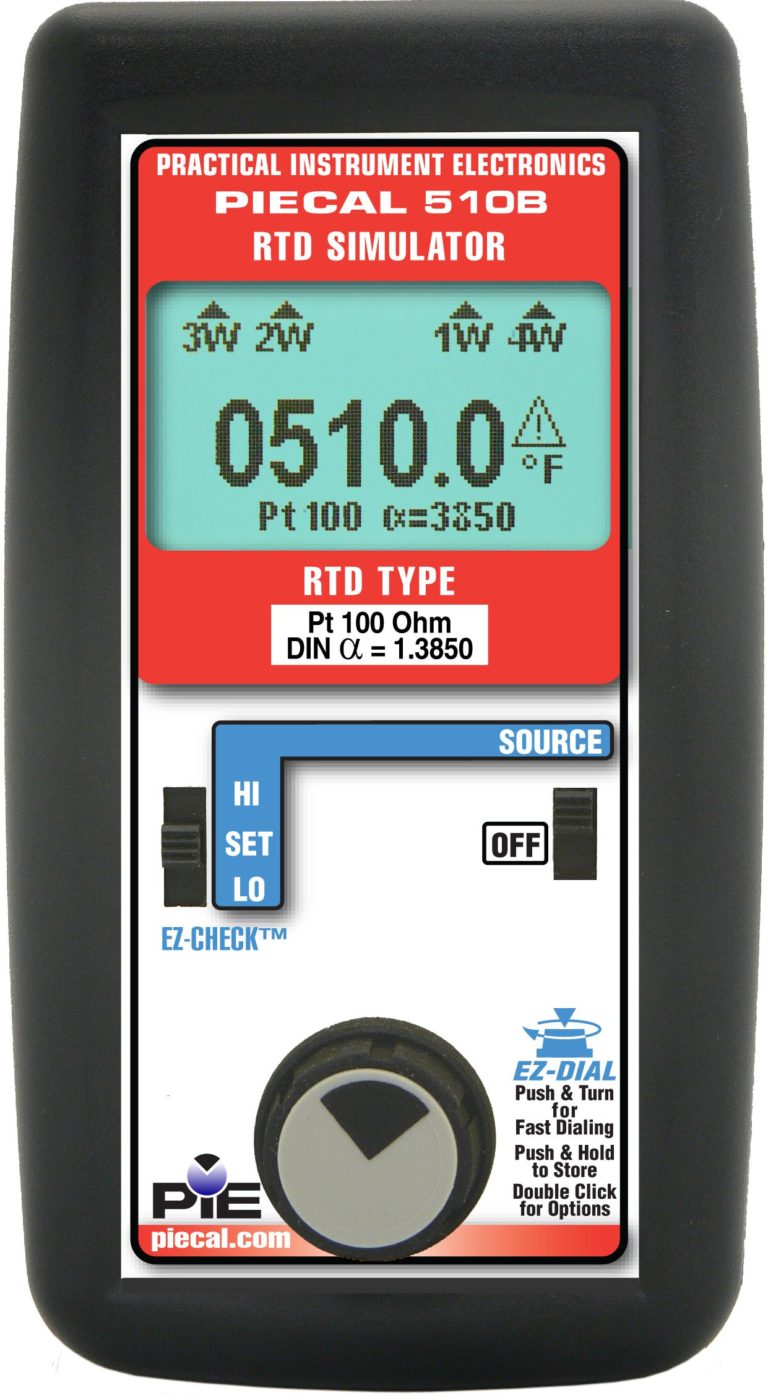

PIE 510B Practical Instrument Electronics Single Type RTD Calibrator


PIE 510B Datasheet (PDF)



RTD source calibrator- single type.  Comes with test leads and NIST certificate


Single Type *


PIE 510B Practical Instrument Electronics Single Type RTD Calibrator

PIE 510B Datasheet (PDF)


Single RTD Simulator

The PIE Model 510B simulates RTD resistances into all types of process instruments including transmitters, recorders, controllers, alarms, data acquisition, and computer systems. No longer will you need to need to lug a decade box around or make errors reading RTD tables incorrectly. The PIE 510B is a superior replacement for decade boxes while eliminating errors caused by misreading RTD to resistance tables by allowing you to dial directly in temperature. The PIE 510B has better accuracy than many higher priced RTD calibrators.


  • Accurate to ±0.25°C (±0.5°F) for Pt 100 Ohm RTD’s with 0.1° resolution
  • Source one dedicated RTD curve with Direct Temperature Output
  • Selectable °C or °F
  • Several Manufacturers RTD Curves Available – plus custom curves for Platinum, Copper & Nickel sensors
  • Guaranteed compatible with devices using pulsed excitation currents including PLCs, DCS, multi channel recorders, etc.
  • Works with a wide variety of smart transmitters including popular Rosemount and Honeywell models
  • EZ-Dial™ Knob with two dialing speeds makes adjusting output easy
  • EZ-Check™ switch stores settings for 0% and 100% span adjustments
  • Uses four standard “AA” Alkaline Batteries
  • Superior battery life of 45 hours under typical continuous usage
  • Easy access to battery compartment
  • Lightweight and Rugged with a Solid Feel
  • Small and tough
  • Protected to 60V
  • Optional Rubber Boot, Carrying Case and Test Data available
  • NIST Traceable Calibration Certificate included FREE


PIE 510B Additional Information:

Weight 2 lbs
Dimensions 6.75 × 4.25 × 3.5 in
RTD Curve Pt 100Ω α=1.3850, Pt 100Ω α=1.3902, Pt 100Ω α=1.3916, Pt 100Ω α=1.3926, Pt 1000Ω α=1.3850, Pt 1000Ω α=1.375, Cu 10Ω, Cu 50Ω, Ni 110Ω, Ni120Ω

Additional information

Weight 5 lbs
Dimensions 10 × 7 × 8 in
