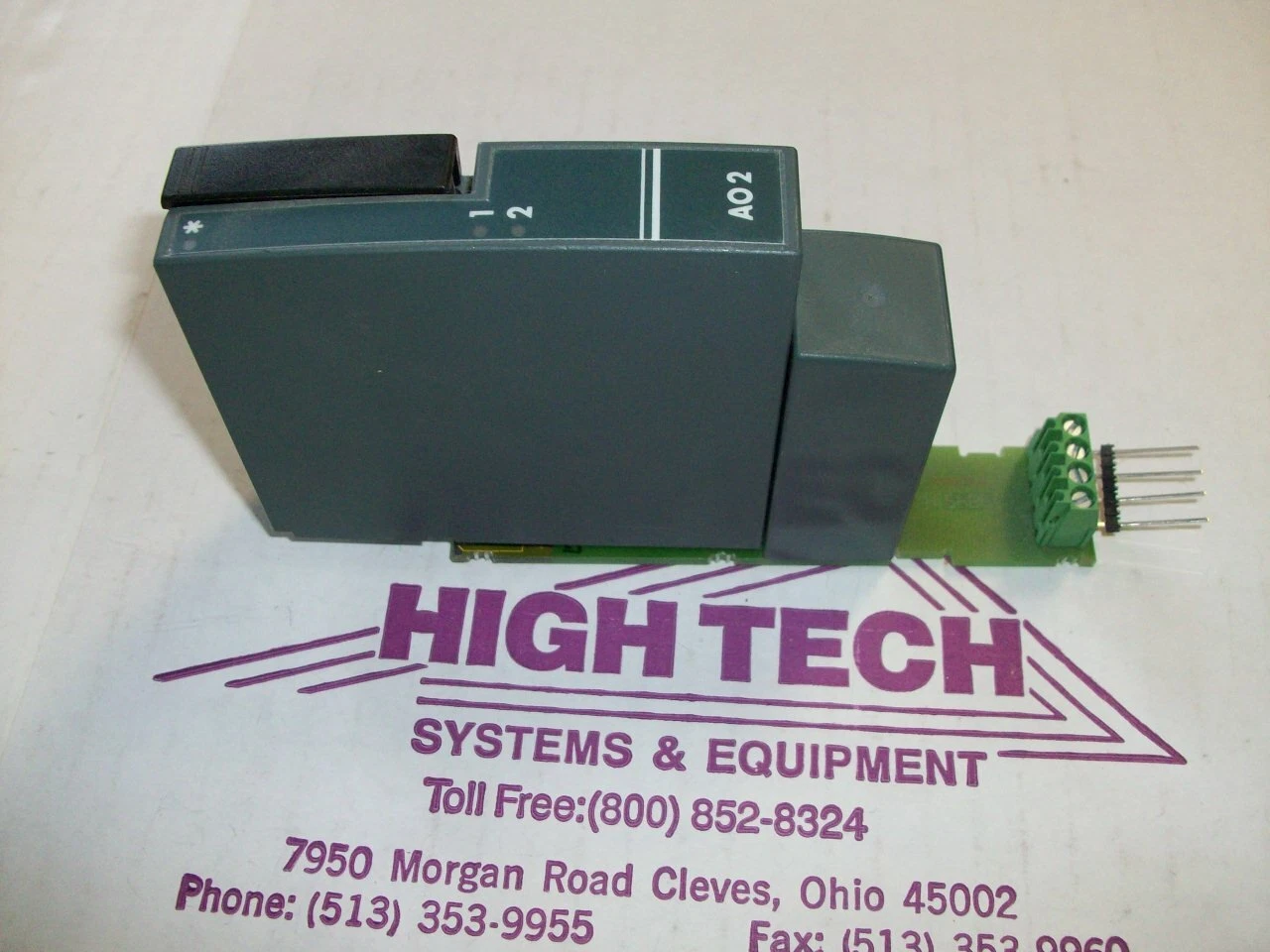

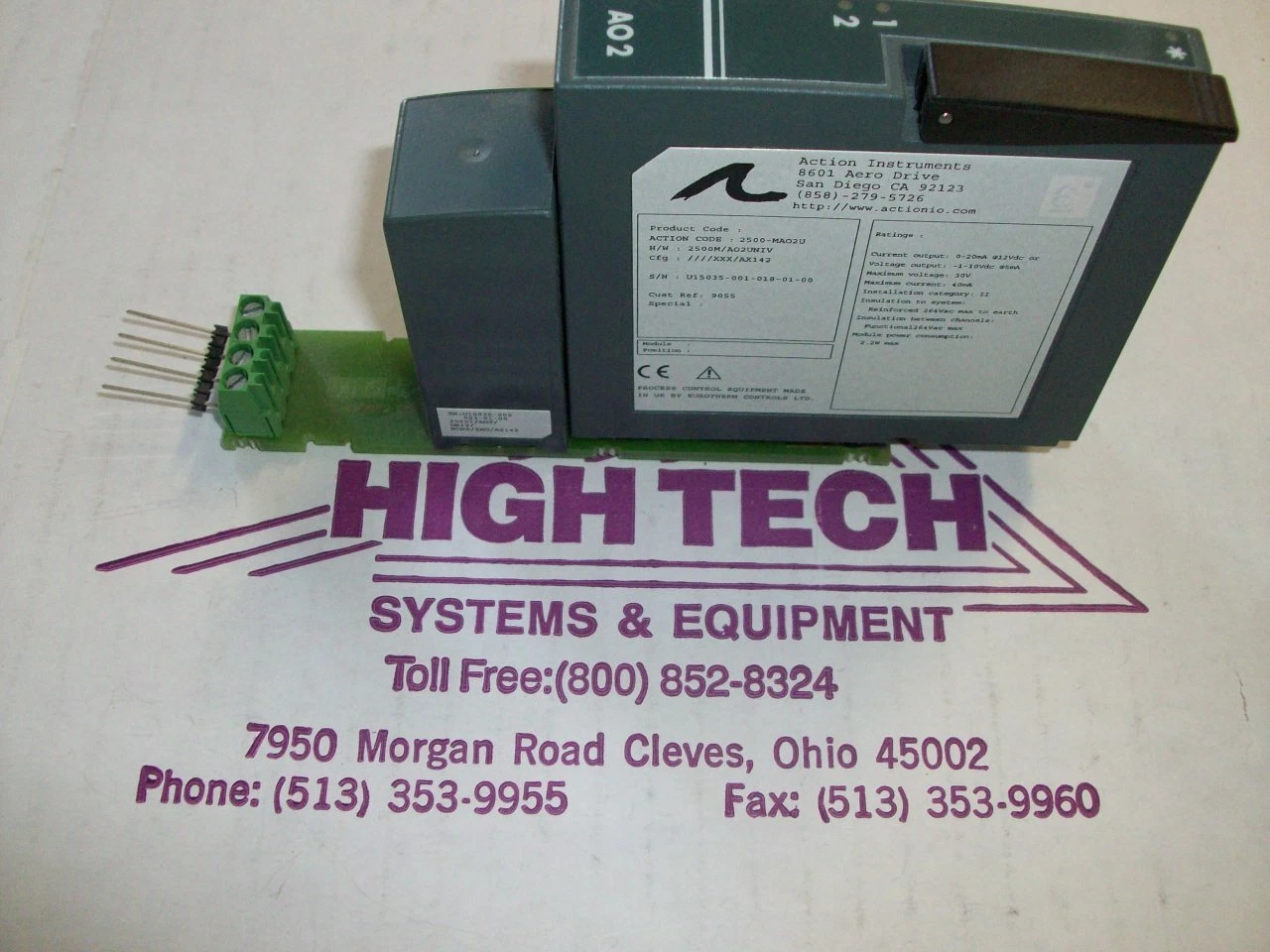

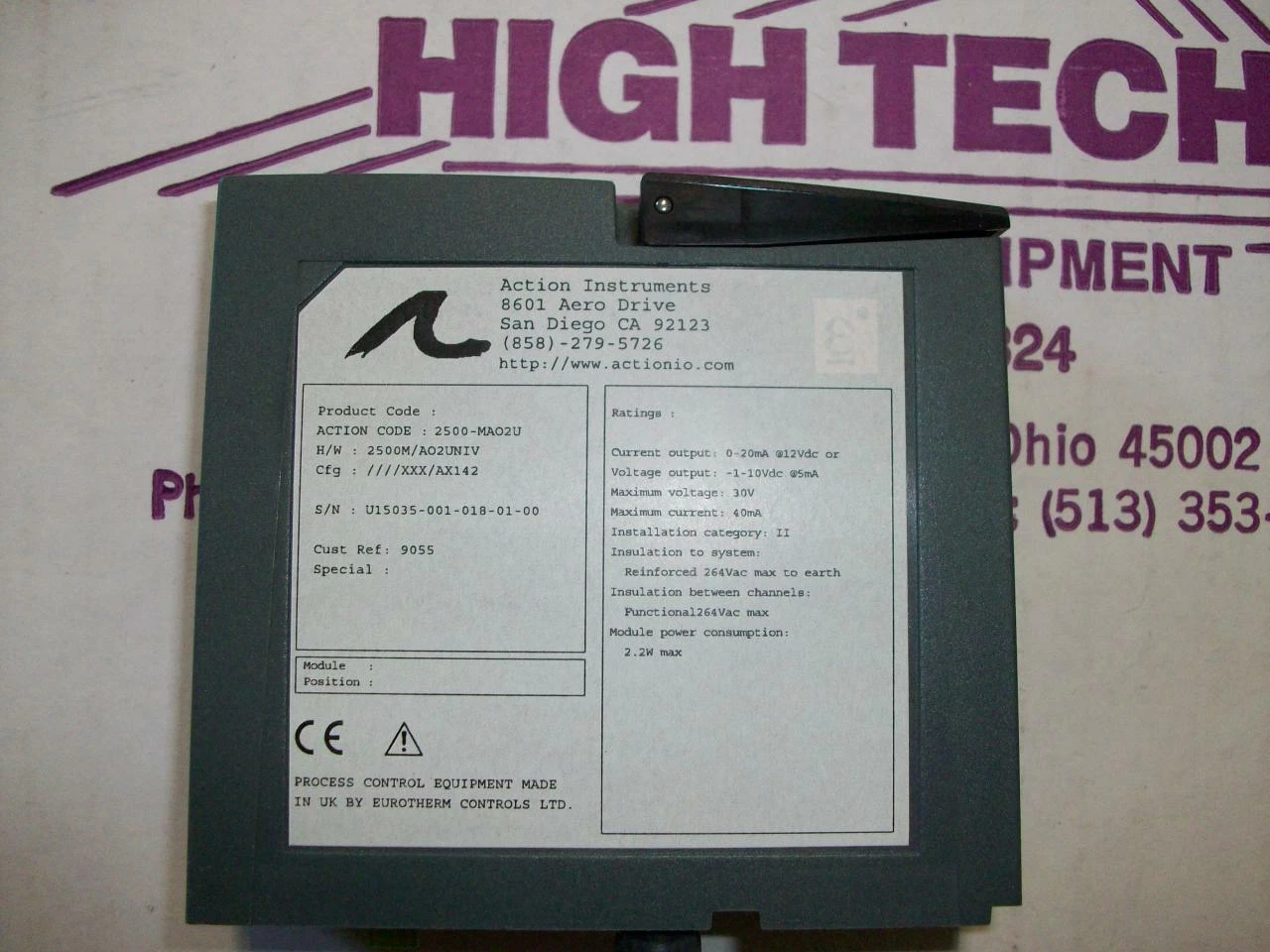

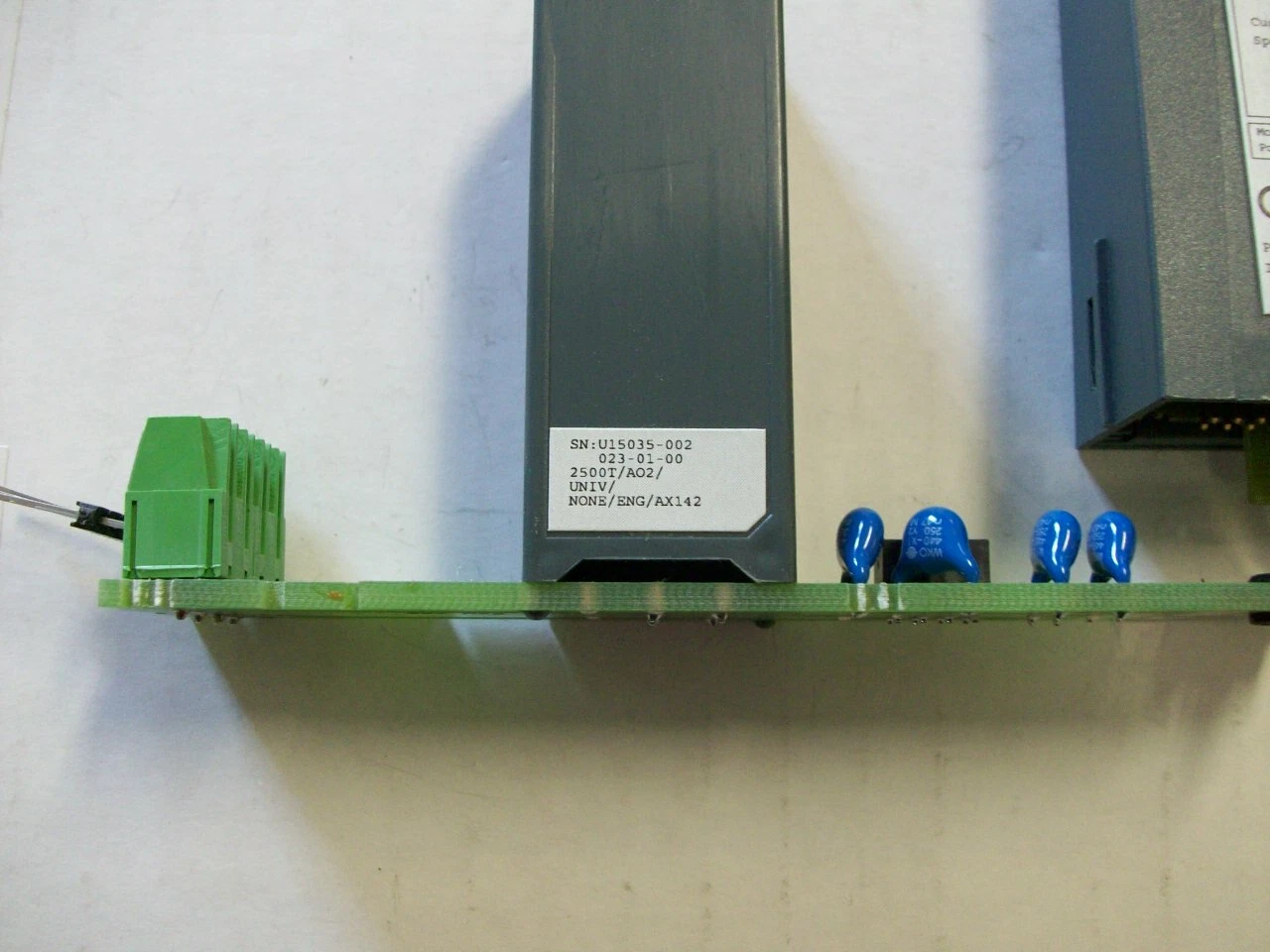

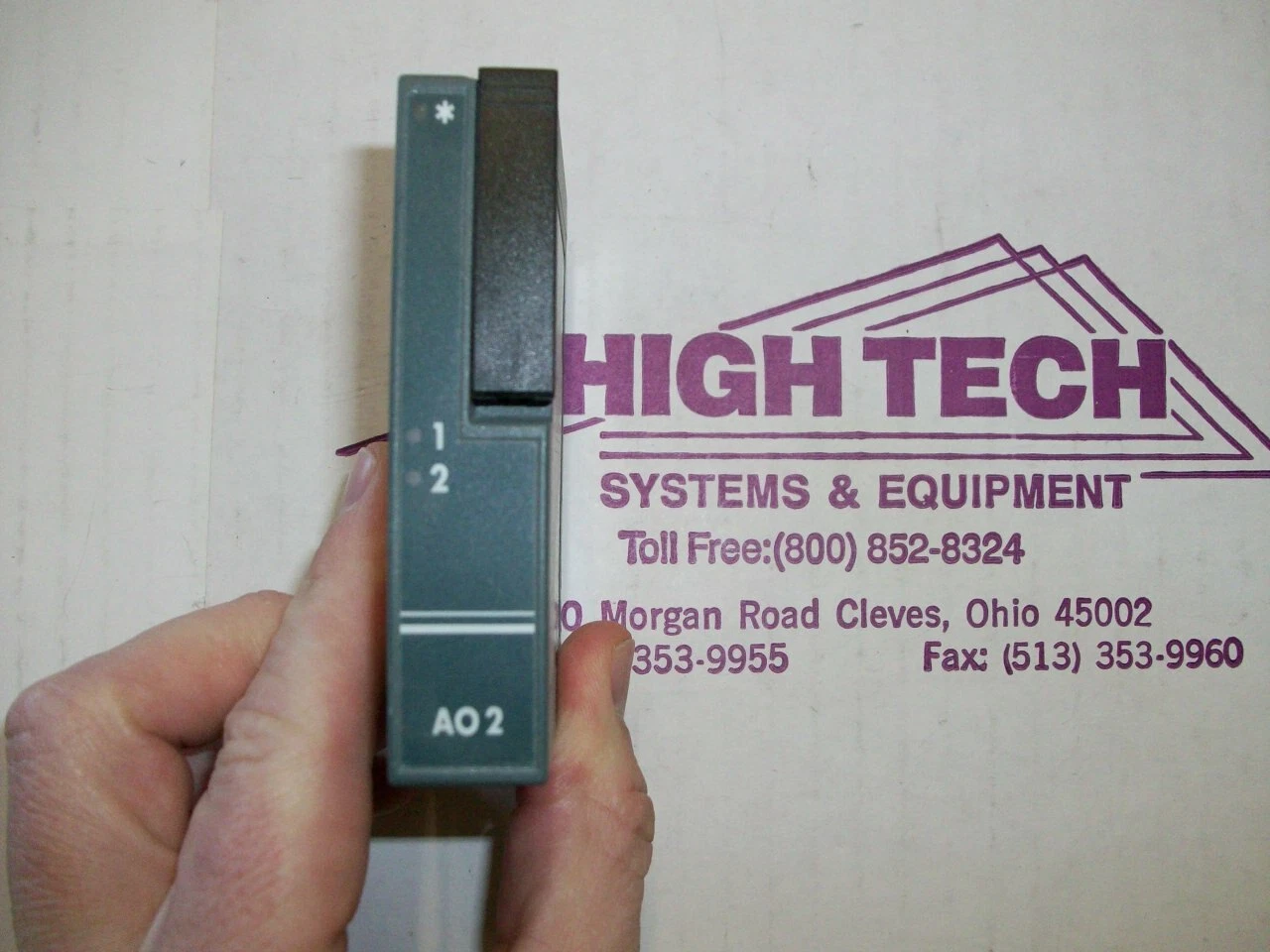

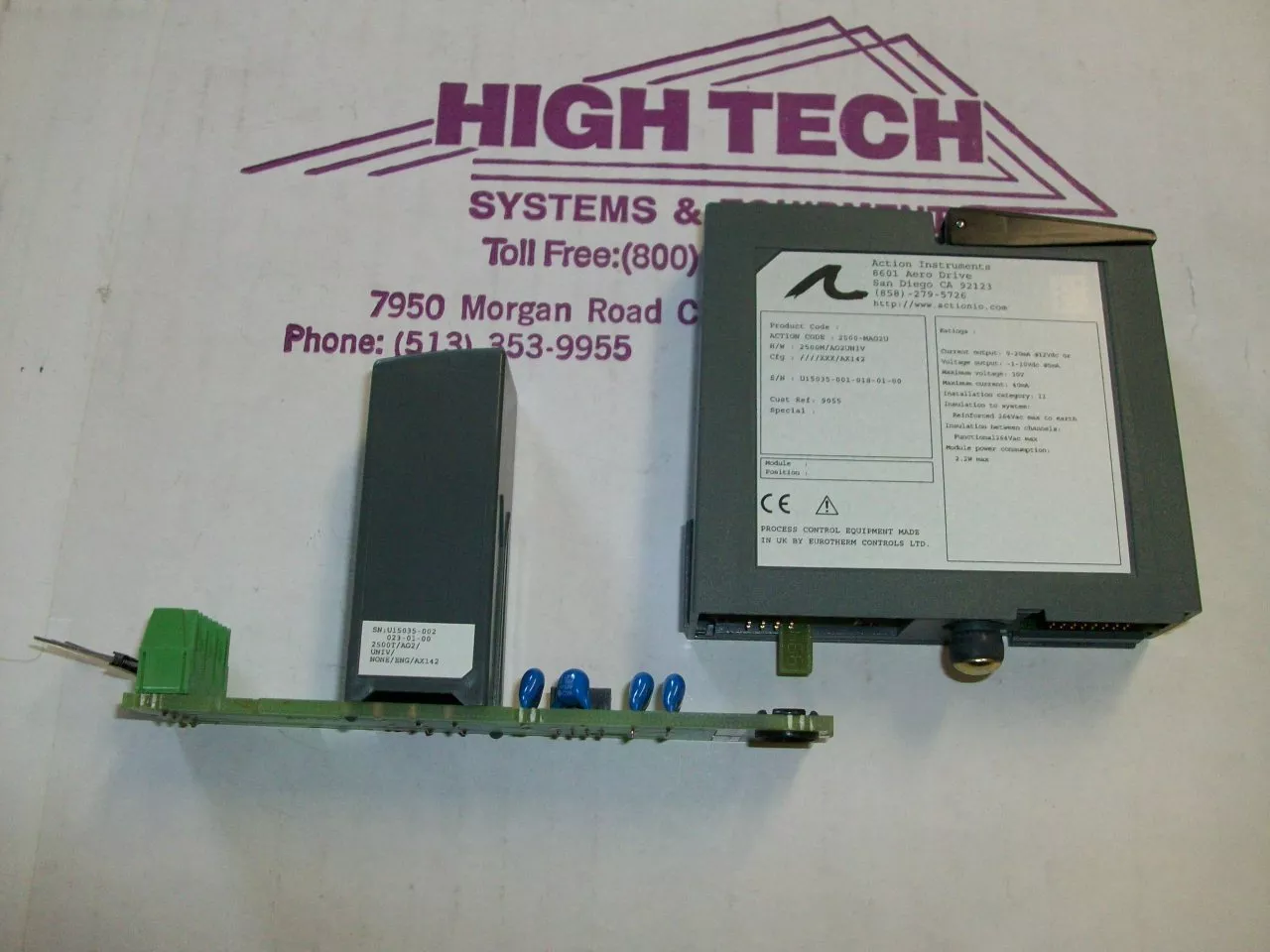

Eurotherm 2500/AO2/UNIV AND 2500T/AO2/UNIV Relay Output Module AO2 Action

Email sales@htsei.com with any questions or call 513-353-9955

Precision Analog Output for Industrial Process Control

The Eurotherm AO2/UNIV module is a dual-channel universal analog output module for the 2500 Series PAC system. Designed for flexible voltage or current output, this module allows precise control of external devices like valve actuators, indicators, and variable speed drives.

Key Features:

• Output Channels: 2 Universal Analog Outputs

• Signal Types Supported:

  • 0–10V, 1–5V, ±10V

  • 4–20mA, 0–20mA (sink or source, user-configurable)

• High Resolution: 16-bit D/A conversion for fine output precision

• Calibration: Factory calibrated for accuracy

• Galvanic Isolation: Isolated outputs for reliable signal integrity

• Hot Swappable: Replaceable without system shutdown (in supported chassis)

• Status LEDs: Channel activity and error indicators

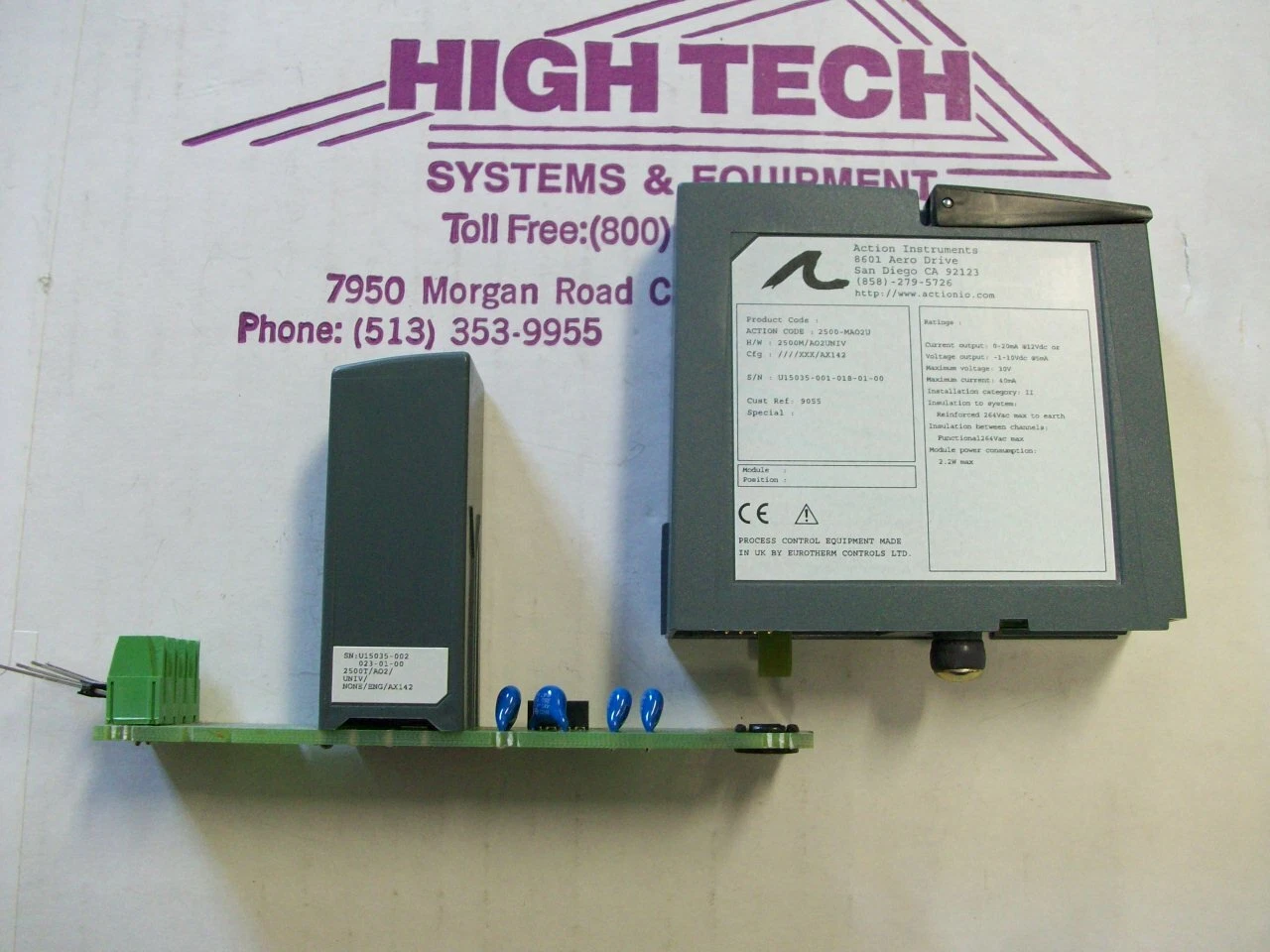

• Mounting Types:

  • 2500M: Module for mounting on 2500M base

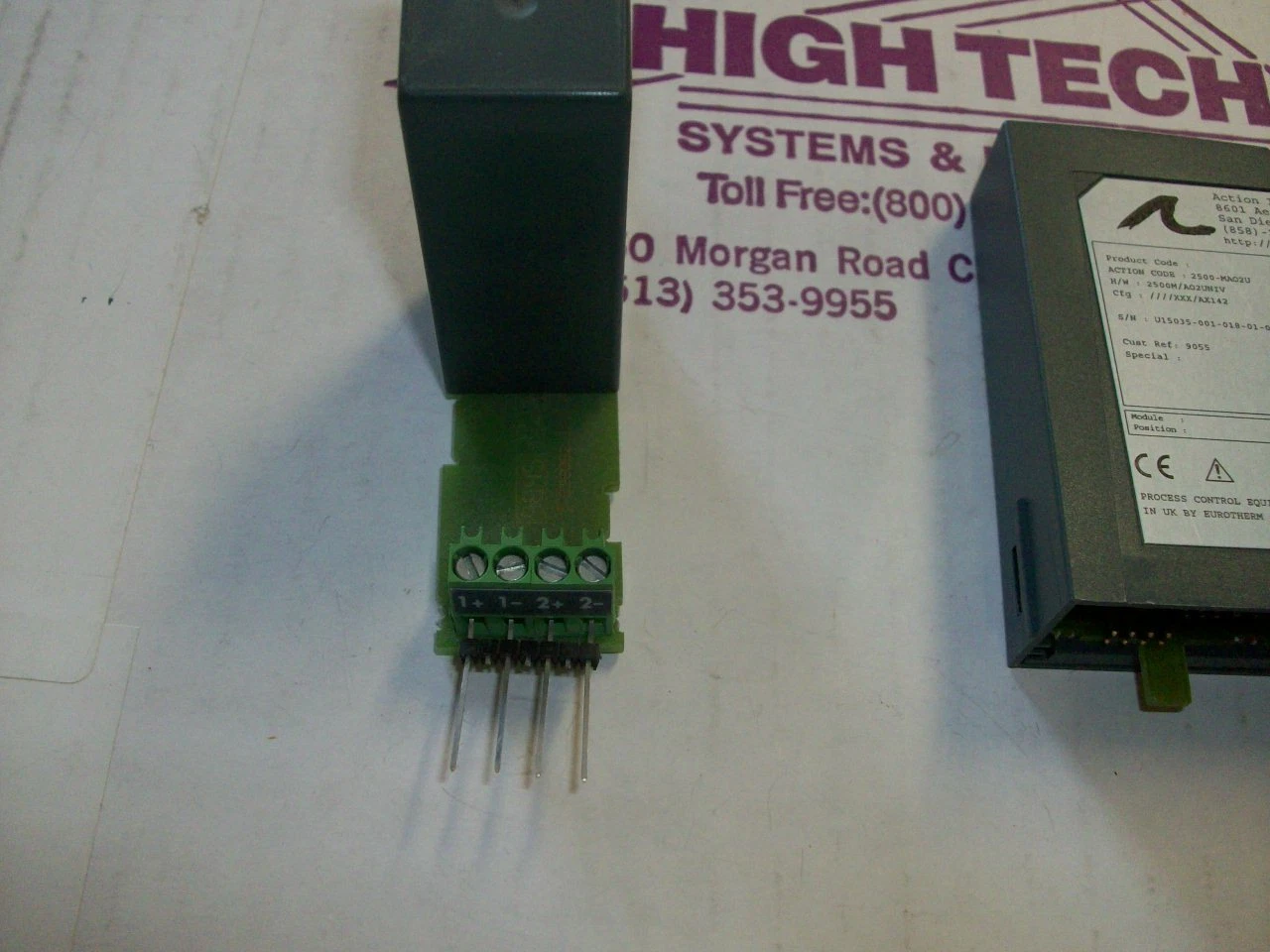

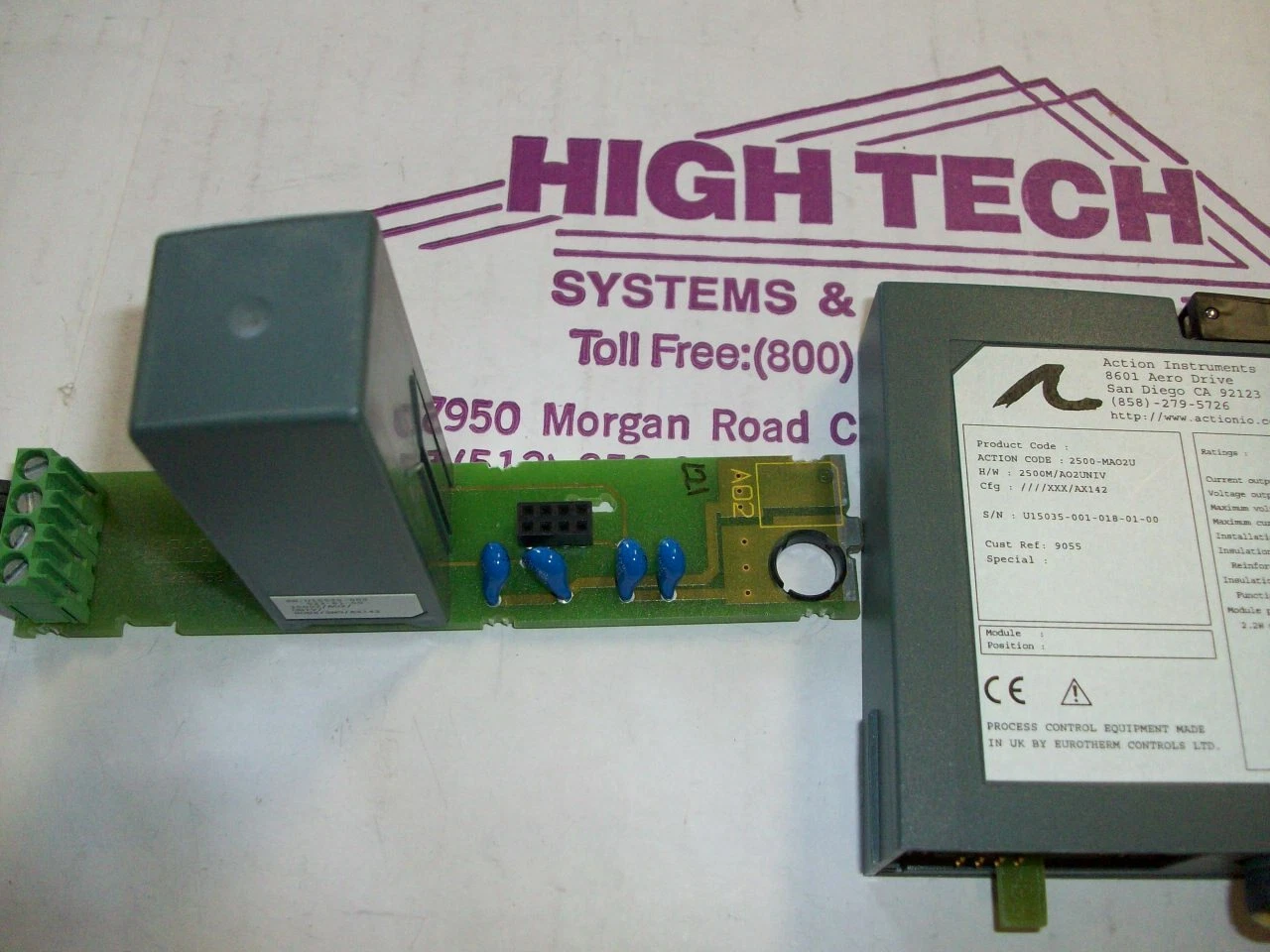

  • 2500T: Terminal module for field wiring with fuse or filter options

System Compatibility:

• Eurotherm 2500M & 2500T Base Units

• T2750 / T2550 PAC Systems

• Eurotherm iTools Software for configuration

• Compatible with Modbus / Ethernet communication setups
