Eurotherm 2500M/RLY4 & 2500/RLY4 & 2500t/RLY4/FUSE2A – 4- Channel Relay Output Modules

Email sales@htsei.com with any questions or call 513-353-9955

Reliable Relay Output Expansion for Eurotherm 2500 I/O Systems

The Eurotherm 2500M/RLY4 and 2500T/RLY4/FUSE2A are 4-channel relay output modules designed to deliver dependable control for a wide range of industrial processes. These modules interface with Eurotherm’s 2500 I/O systems and are ideal for driving alarms, contactors, solenoids, and indicator lights in critical applications.

Product Highlights:

🔹 2500M/RLY4

• Mounting: Module-mounted directly to 2500 base unit

• Relay Type: Mechanical SPST relays (Form A)

• Channels: 4 outputs

• Output Rating: Up to 250VAC or 30VDC (resistive loads)

• Isolation: Optically isolated channels

• Use Case: General-purpose relay output for process control and automation

🔹 2500T/RLY4/FUSE2A

• Mounting: Terminal-mounted

• Relay Type: Mechanical SPST relays (Form A)

• Channels: 4 outputs with individual 2A fuses

• Fused Protection: Built-in 2A fuses for safety and load protection

• Ideal For: Driving higher-power devices and providing short-circuit protection

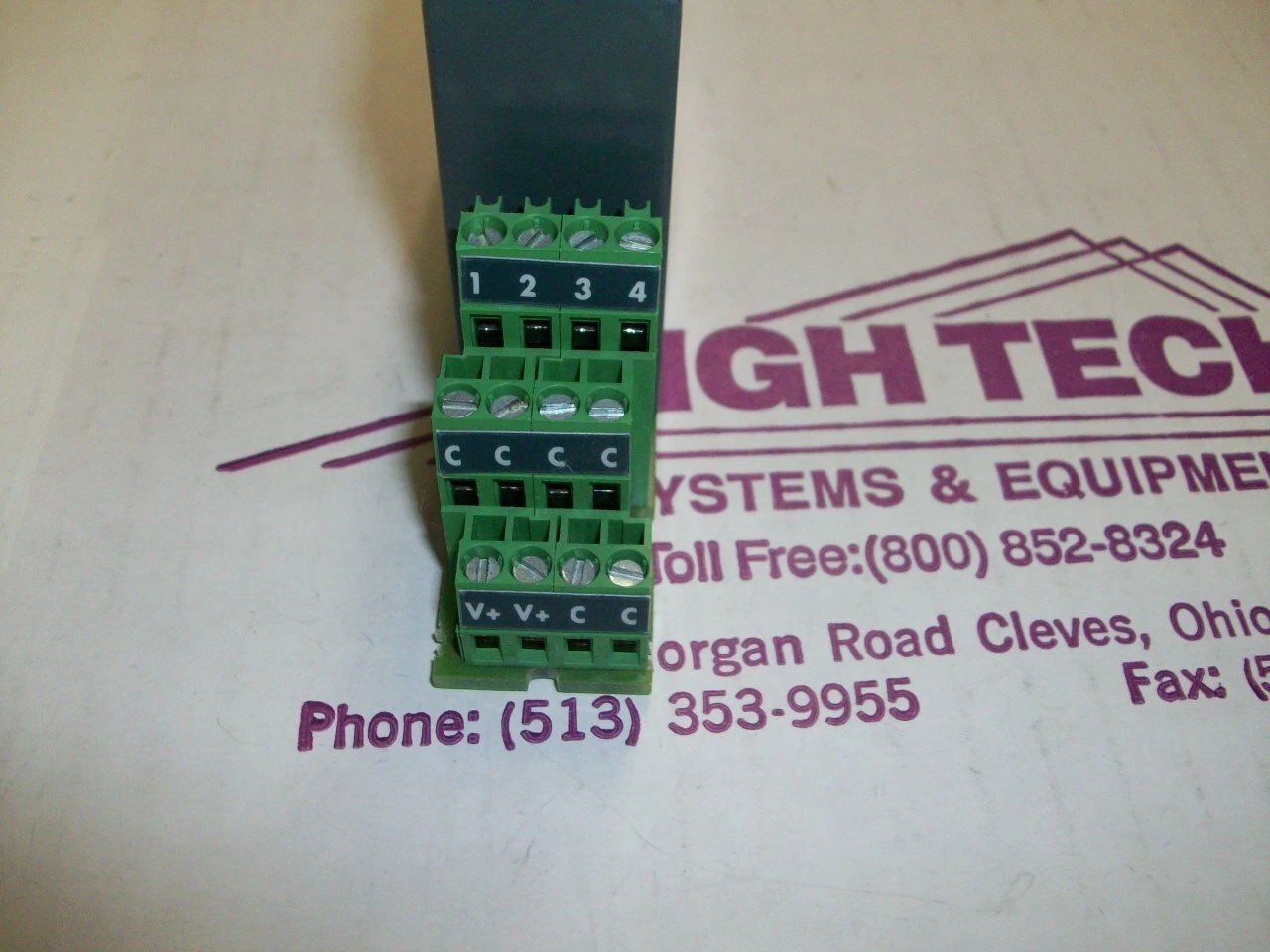

• Easy Field Wiring: Terminal block with labeled screw connections
