Eurotherm EA76 Schneider Electric High Torque Actuator Barber Colman EA76-00000-000-0-00

$4,651.00

Eurothem EA76 Datasheet (PDF)

Eurotherm EA76 Manual (PDF)

Eurotherm EA76: 180 Degree Travel Limit, 115 sec travel time, 1300 in-lbs torque, contact controlled, 120Vac/60Hz, 100 ohm slidewire feedback

SKU: EA76

Description

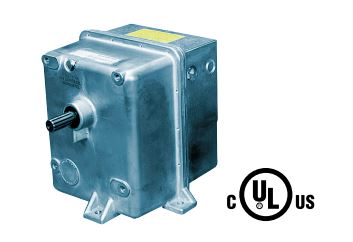

Eurotherm EA76 Schneider Electric High Torque Actuator

Eurothem EA76 Datasheet (PDF)



Barber Colman Old Model #: EA76-00000-000-0-00



Eurotherm EA76: 180 Degree Travel Limit, 115 sec travel time, 1300 in-lbs torque, contact controlled, 120Vac/60Hz, 100 ohm slidewire feedback



These Eurotherm EA76 workhorses have the brute force to handle the big job such as a heavy damper, globe valve, blast gate or air/gas valve.

It can be used for vortex control and hydraulic coupling and will drive a speed changing screw or slide gate re-quiring a torque proportional actuator.

A solenoid brake holds the actuator in position when no movement is required.

These actuators stay in position when power is removed. NEMA 4 versions are available.

The EA76 is compatible with the VB-7000 and VB-9000 valves.



Eurotherm EA76 Valve Actuators

Ideal for:

  • Heavy damper
  • Globe valve
  • Blast gate
  • Air/gas valve

Features:

  • Analog input proportional control signal
  • 550, 1100 and 1300 in–lbs torque
  • Oil immersed motor and gear train
  • Compatible with VB series valves



Specifications
180 degree stroke
Yes
360 degree stroke
No
4-20mA Input
Optional
90 degree stroke
Yes
Auxiliary Switches
1 Standard additional 2 or 4 switches optional
CE
No
CUL or CSA
Yes
Linear Stroke
No
NEMA Rating
NEMA 4 (Selected Models)
Output Types
120V dc 60Hz
Position Signal
Potentiometer optional
Torque
550- 1300lb-in
UL Listed
Yes

Additional information

Weight 35 lbs
Dimensions 15 × 15 × 11 in
