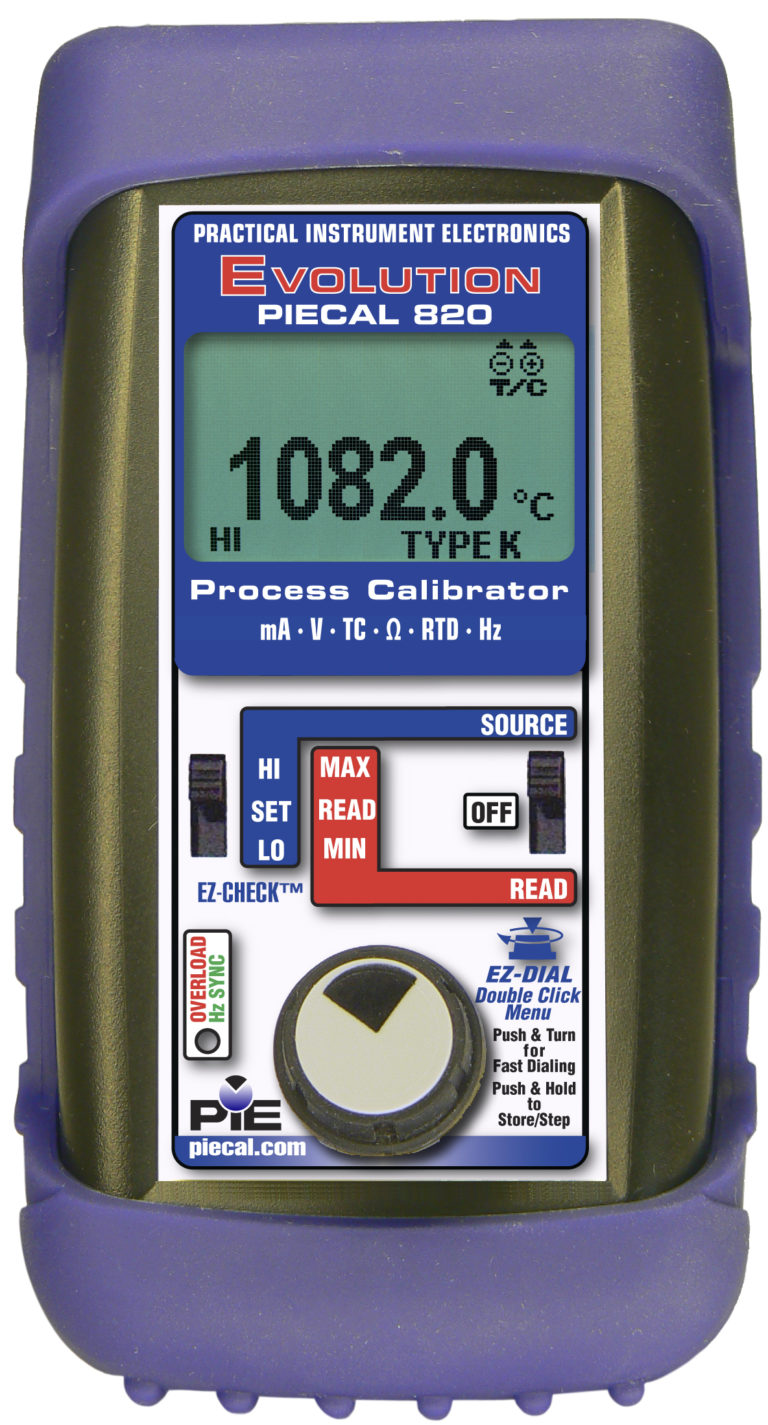

PIE 820 Practical Instrument Electronics Multi-function Process Calibrator
6 functions in 1 calibrator:
Multi-function Process Calibrator – mA • V • TC • Ohms • RTD • Hz
Lighten up your toolbox
-Pocket sized calibrator replaces toolbox of single function devices
Technician friendly operation
-Intuitive EZ-DIAL double click menu makes it easier to setup than other multi-function calibrators. Uses the same menus as the single function PIE Evolution calibrators. Icons on the display indicate where to plug in the test leads.
Use it as a milliamp and voltage calibrator
-Source 0.00 to 24.00 mA, 0.00 to 10.25 VDC and 0.00 to 80.00 mV
-Read to 24.00 mA, 00.00 to 10.,25 VDC, 0.0 to 60.0 VDC, 00.00 to 80.00 mV
-Simulate 2 Wire transmitters
-Power up transmitters and loops with built-in 24 V power supply
-Simplify HART hook ups with built in 250 ohm resistor
Calibrate directly in temperature (°C & °F)
-The PIE 820 works with the instruments you use.
-Thermocouple types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P(Platinel II)
-RTD types Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850)
-Copper 10 & 50 Ohm, Nickel 110 and 120 Ohm
Checkout flow and vibration systems
-Source & read frequency to 2000 CPM (Counts-Per-Minute), 999.99 Hz, 9999.9 Hz, 20.000 kHz
Troubleshoot loop & wiring problems
-Beep out connections with the built-in continuity checker
Easy to read
-Turn on the backlight & easily see the display in dark areas of the plant
Quickly set any three outputs plus automatic stepping & ramping
-Easily set any value quickly with the adjustable EZ-DIAL; store any three output settings for instant recall with the EZ-CHECK switch.
-Choose between 2, 3, 5 & 11 steps to automatically increment the output in 100%, 50%, 25% or 10% of span.
-Select RAMP to smoothly increase and decrease the output between Zero and Span.
-Set step/ramp time to match your system from 5, 6, 7, 8, 10, 15, 20, 25, 30 and 60 seconds
|Dimensions||7.75 × 5.25 × 4.5 in|
