AC890 Parker AC Variable Frequency Drives SSD

See price below

AC890 Tech Specs (PDF)

AC890 Catalog (PDF)

AC890 Products (PDF)

Please Call 800-852-8324 with any Questions!!

SKU: AC890

Description

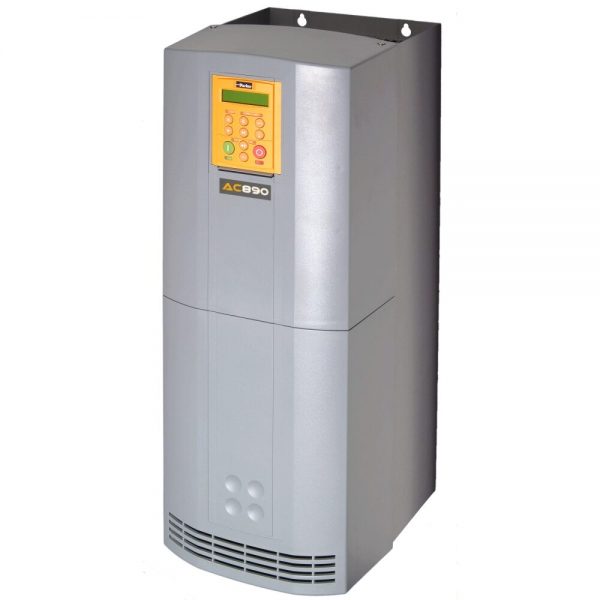

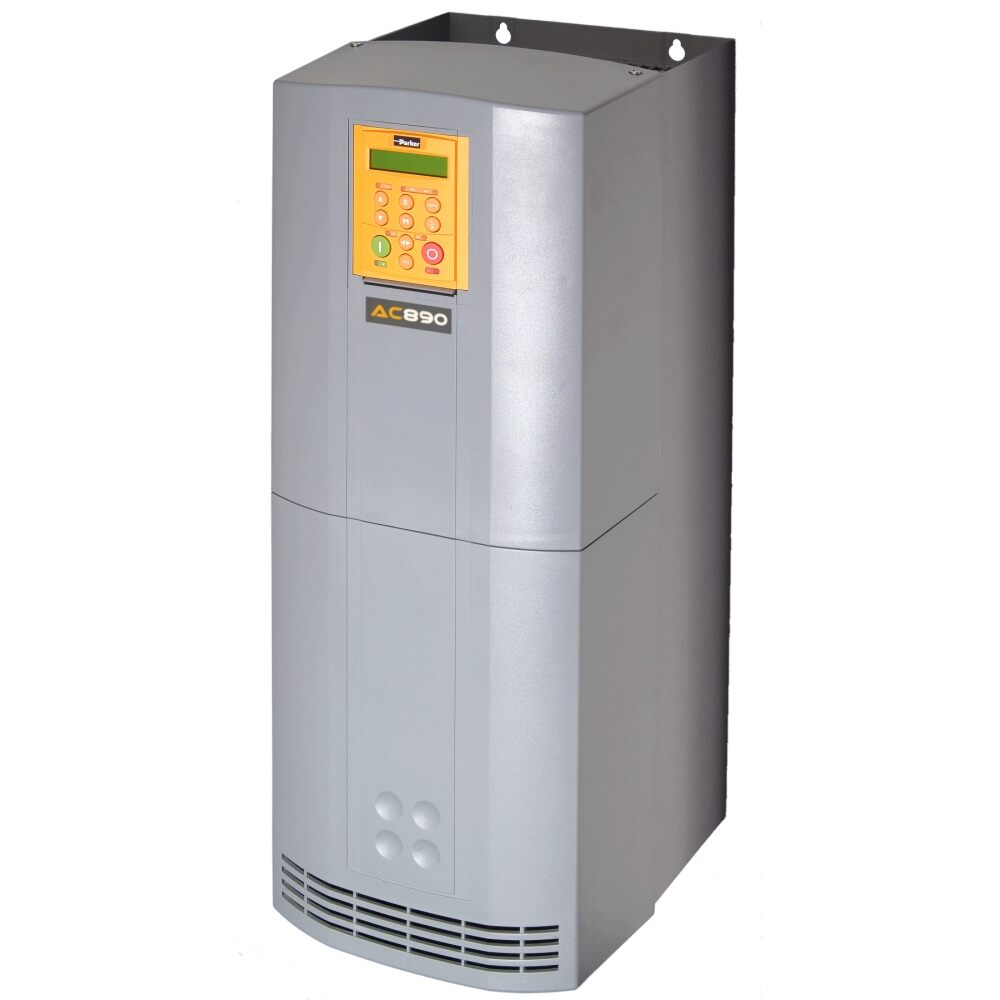

AC890 Parker AC Variable Frequency Drives (VFD)

The AC890 is a compact, modular systems drive engineered to control speed and position of open-loop and closed-loop, single- or multi-motor AC induction or servo motor applications. Includes Safe Torque Off (STO) feature (Frames B-F) to SIL3 or PLe level as per EN ISO13849 and EN61800-5-2.

Compatible with a wide range of feedback options, the AC890 is designed to work with any AC motor and virtually any speed/position feedback options. Common bussing is supported, with a variety of common supply and common drive modules available, in addition to standalone models for simpler applications.

Available in 1 to 1200 HP at 380-500V 3-phase, and 1 to 10 HP at 220V-240V 3 phase.



Features:

4-mode operation…volts/hertz, sensorless vector, full flux vector, PMAC servo

Variable torque and constant torque ratings

Common bus connections

Safe torque off (STO) standard

Function block programming

UL, cUL listed ratings

Application macros

Choice of multiple communications cards

Programming keypad included

Options for fieldbus comms, feedback, more…



AC890 can be user configured for 5 different operating modes:

Open-Loop (volts/frequency) Control:

This mode is ideal for basic motor speed control.

Sensorless Vector Control:

With its ultra high performance sensorless vector algorithm, it delivers a combination of both high torque and close speed regulation without the need for any speed measuring transducer.

Closed-Loop Vector Control:

Full closed-loop flux vector performance can be achieved with the AC890 by simply adding an encoder feedback ‘technology box’. This provides 100% continuous full load standstill torque, plus a highly dynamic speed loop more than sufficient for the most demanding applications.

Servo Control:

Designed for the most demanding servo systems. The ultra fast control loops and process bus make the AC890 ideal for single or multi axis applications.

4 Quadrant Active front-end power supply module:

With this configuration, the energy is fed back into the mains supply with sinusoïdal currents and unity power factor; a very low current harmonic content is achieved.

Tech Specs (PDF)

AC890 Catalog (PDF)

AC890 Products (PDF)

Additional information

Weight 75 lbs
Dimensions 36 × 36 × 36 in
