PIE 830PM Practical Instrument Electronics Multi-Function Diagnostic Panel Mount Calibrator


PIE 830PM Datasheet (PDF)

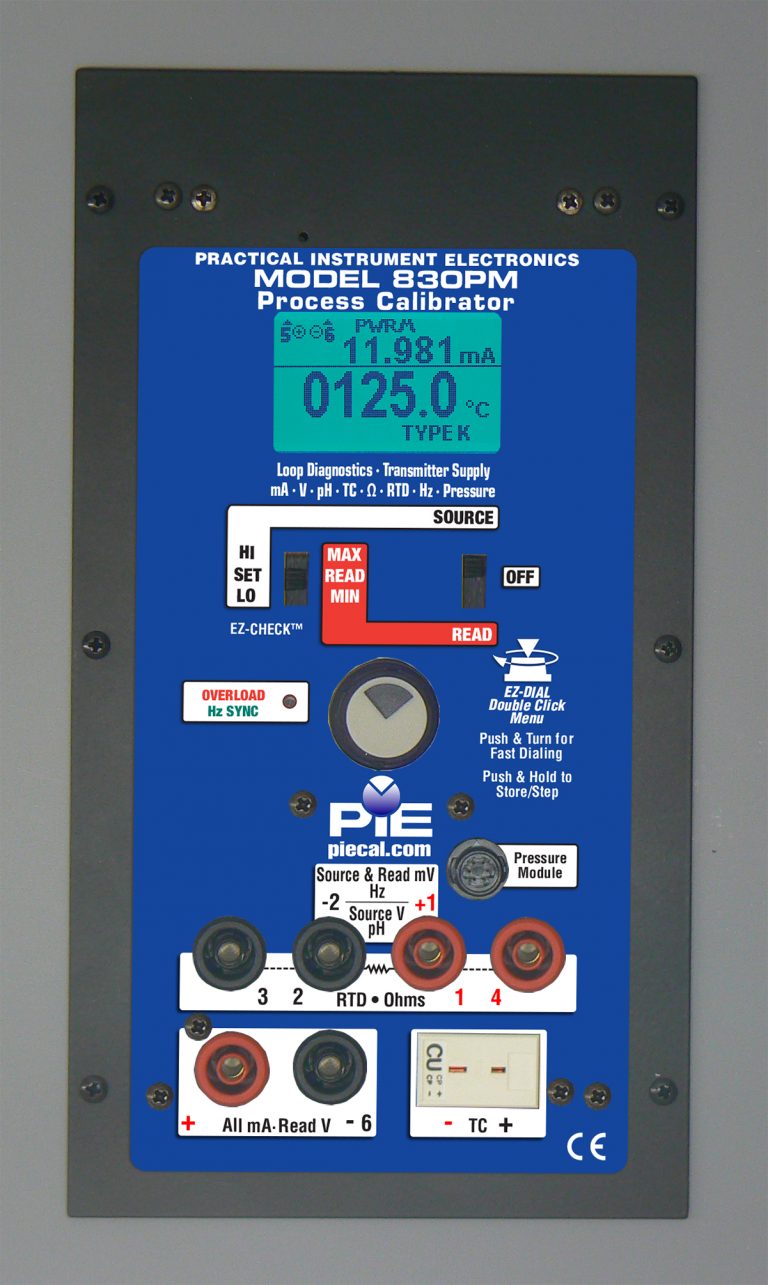

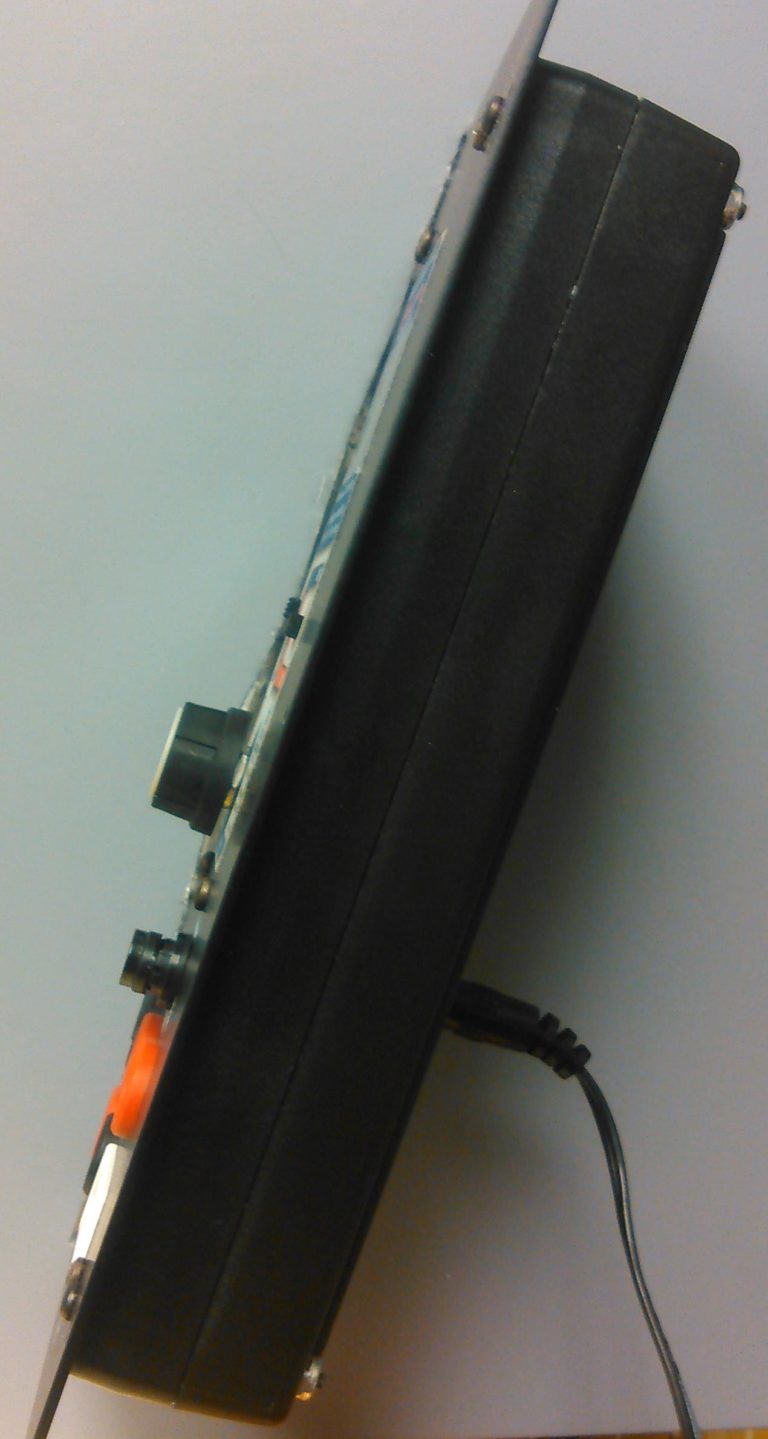

Panel Mount PIE 830 multi-function calibrator. Comes with AC adapter, mounting plate, screws and NIST certificate.



PIE 830PM Practical Instrument Electronics Multi-Function Diagnostic Panel Mount Calibrator

PIE 830PM Datasheet (PDF)


PIE 830PM Calibrator functions include:

Calibrate milliamps and voltage
-Source 0.00 to 24.00 mA, 0.00 to 10.25 VDC and 0.00 to 80.00 mV
-Read to 24.00 mA, 00.00 to 10.,25 VDC, 0.0 to 60.0 VDC, 00.00 to 80.00 mV
-Simulate 2 Wire transmitters
-Power up transmitters and loops with built in 24 V power supply
-Simplify HART hook ups with built in 250 ohm resistor

Calibrate directly in temperature (°C & °F)
-Thermocouple types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P(Platinel II)
-RTD types Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850)
-Copper 10 & 50 Ohm, Nickel 110 and 120 Ohm
-Resistance up to 4010 ohms

Checkout flow and vibration systems
-Source & read frequency to 2000 CPM (Counts-Per-Minute), 999.99 Hz, 9999.9 Hz, 20.000 kHz

Source pH signals to calibrate pH transmitters and instruments
-Source from 0.000 to 14.000 pH @ 25°C (77°F) corresponding to +414.12 to -414.12 mV

Measure pressure with optional pressure modules
-32 modules for gauge, differential, compound and absolute pressure

Two isolated channels allow you to calibrate transmitters, PLC’s and other instruments with one unit

Calibrator features include:


Value added troubleshooting features of the PIE 830PM
-Patented diagnostics including Current Leak detection;  LOOPSCOPE which indicates loop current, voltage and resistance
-Auto detection of RTD connections
-Ability to operate as an Isolated Transmitter

Technician friendly operation
-Intuitive EZ-DIAL double click menu makes it easier to setup than other multi-function calibrators. Uses the same menus as our hand held models

Quickly set any three outputs plus automatic stepping & ramping
-Set any value quickly with the adjustable EZ-DIAL; store any three output settings for instant recall with the EZ-CHECK switch
-Choose between 2, 3, 5 & 11 steps to automatically increment the output in 100%, 50%, 25% or 10% of span
-Select RAMP to smoothly increase and decrease the output between Zero and Span
-Set step/ramp time to match your system from 5, 6, 7, 8, 9, 10, 15, 20, 25, 30 and 60 seconds

Easily recall stored values
-Use the EZ-CHECK™ switch to recall the HI and LO values automatically stored when in READ mode


Included with each unit:

-Rugged painted aluminum mounting plate with mounting screws
-110/120V AC adapter
-3 year warranty
-NIST calibration certificate


Additional Information:
Weight 4 lbs
Dimensions 8.75 × 4.75 × 2.0 in

Additional information

Weight 5 lbs
Dimensions 10 × 7 × 8 in
