Sale!

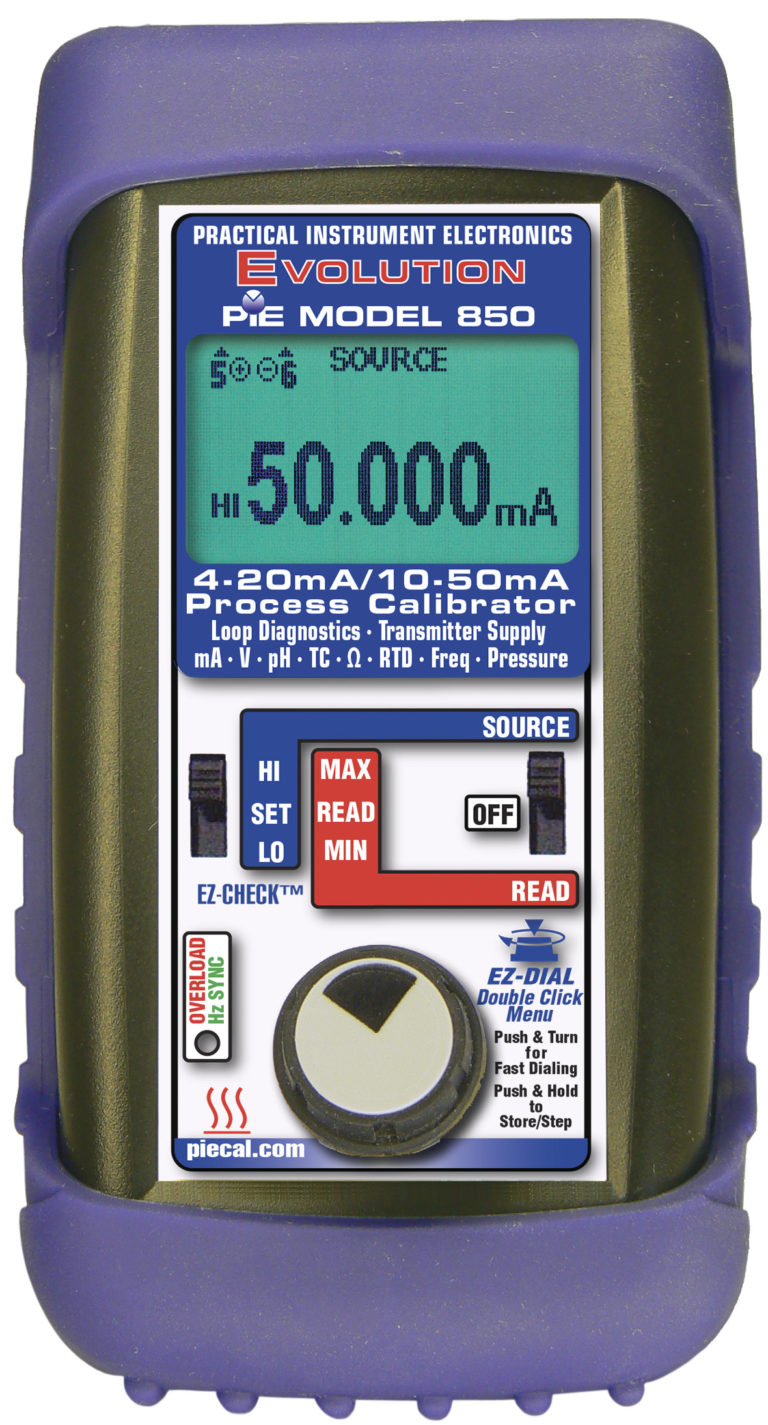

PIE 850 Practical Instrument Electronics 10-50 mA Multi-Function Process Calibrator

$4,587.55

PIE 850 Datasheet (PDF)



Includes:

4-20 & 10-50 mA Multi-function Diagnostic single channel calibrator. Comes with rubber boot, hands free carrying case, test leads and NIST certificate with data.

SKU: PIE 850

Description

PIE 850 Practical Instrument Electronics 10-50 mA Multi-Function Process Calibrator

PIE 850 Datasheet (PDF)



Loop Diagnostics

PIE 850: 10-50 mA Multi-function Process Calibrator – mA • V • TC • Ohms • RTD • Hz • pH • Pressure



  • Lighten up your toolbox
    Compact calibrator replaces toolbox of single function devices



  • Technician friendly operation
    Intuitive EZ-DIAL double click menu makes it easier to setup than other multi-function calibrators. Uses the same menus as the single function PIE Evolution calibrators. Icons on the display indicate where to plug in the test leads.



  • Use it as a milliamp and voltage calibrator
    Source 0.000 to 24.000 mA, 0.000 to 50.000 mA, 00.00 to 10.250 VDC, -20.000 to 99.999 mV and -500.00 to 999.99 mV
    Read to 24.000/52.000 mA, 0.00 to 60.00 VDC, +/- 99.999 mV and +/- 999.99 mV
    Simulate 2 Wire transmitters
    Power up transmitters and loops(24 VDC @ 20 mA; 40 VDC @ 50 mA) with built in power supply
    Simplify HART hook ups with built in 250 ohm resistor



  • Troubleshoot Loop problems
    Quickly diagnose ground fault and current leakage with patented loop diagnostic technology(US Patent # 7,248,058)



  • Check all loop parameters at once with the LoopScope
    Simultaneously displays current, voltage and resistance to let you know the condition of a live loop. Finds problems with power supplies & loops with too many loads. Patented by PIE!



  • Calibrate directly in temperature (°C & °F)
    The PIE 850 works with the instruments you use.
    Thermocouple types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P(Platinel II)
    RTD types Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850)
    Copper 10 & 50 Ohm, Nickel 110 and 120 Ohm



  • Checkout flow and vibration systems
    Source & read frequency to 2000 CPM (Counts-Per-Minute), 999.99
    Hz, 9999.9 Hz, & to 20.000 kHz



  • Troubleshoot loop & wiring problems
    Beep out connections with the built-in continuity checker



  • Simulate pH probes into transmitters & analyzers
    Source from 0.000 to 14.000 pH @ 25°C (77°F) corresponding to +414.12 to -414.12 mV



  • Measure pressure with optional pressure modules
    32 modules for gauge, differential, compound and absolute pressure



  • Easy to read
    Turn on the backlight & easily see the display in dark areas of the plant



  • Quickly set any three outputs plus automatic stepping & ramping
    Easily set any value quickly with the adjustable EZ-DIAL; store any three output settings for instant recall with the EZ-CHECK™ switch.
    Choose between 2, 3, 5 & 11 steps to automatically increment the output in 100%, 50%, 25% or 10% of span.
    Select RAMP to smoothly increase and decrease the output between Zero and Span.
    Set step/ramp time to match your system from 5, 6, 7, 8, 10, 15, 20, 25, 30 and 60 seconds



  • Measure temperature sensors, frequency pickups, loop currents, voltage levels & pressures
    Check the values of your process sensors. Instantly recall MAX and MIN values to see process variability



  • Includes Rubber Boot, Deluxe Hands Free Carrying Case, Certified Test Data, 4 AA Lithium Ion batteries & mV/RTD Test Leads (020-0820)



Additional Information:
Weight 3 lbs
Dimensions 7.75 × 5.25 × 4.5 in

Additional information

Weight 5 lbs
Dimensions 10 × 7 × 8 in
